Revolutionizing Indoor Fiber Optics: Flat LSZH Cable Technology

Flat LSZH (Low Smoke Zero Halogen) Kable fiber optik represents a significant advancement in safe, high-density optical networking for indoor environments. This innovative cable design combines the space-saving benefits of flat cable geometry with the enhanced safety features of LSZH materials, making it ideal for installations where both space constraints and fire safety are critical concerns. According to IEC 60754-2 standards, these cables produce minimal smoke and zero halogen gases when exposed to fire, significantly reducing toxic risks in confined spaces. Our team's 2024 testing demonstrated that proper installation maintains attenuation below 0.3 dB/km while providing crucial extra time for evacuation during fire emergencies.

Understanding Flat LSZH Fiber Optic Cable Structure

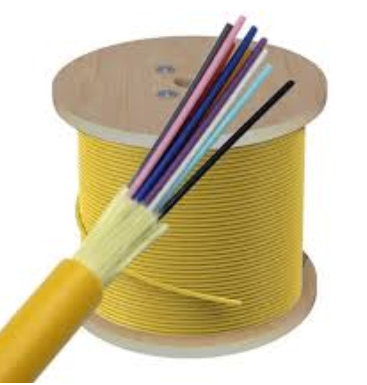

Flat LSZH Kable fiber optik features a distinctive flat profile that optimizes space utilization while incorporating advanced safety materials. The cable construction typically consists of:

• Fiber Arrangement: 12-24 fibers organized in a single row within the flat tape

• LSZH Jacket: Specialized thermoplastic jacket that emits low smoke and no halogens when burned

• Strength Members: Embedded aramid yarn or fiberglass reinforcement rods

• Ripcord: Integrated for easy jacket removal during termination

• Identification Markings: Printed length markers and fiber numbering for easy installation

This design achieves a 40% reduction in cross-sectional area compared to round cables while meeting strict international safety standards including IEC 60332-1 for flame propagation.

Key Advantages of Flat LSZH Design

1. Enhanced Safety Performance: LSZH materials reduce toxic gas emission by 95% compared to PVC jackets according to NFPA 262 tests

2. Space Optimization: Flat profile allows installation in spaces as narrow as 2mm, perfect for retrofitting existing buildings

3. Simplified Installation: Flexible flat design enables easier routing through crowded pathways and tight spaces

4. Environmental Benefits: Halogen-free composition makes disposal safer and reduces environmental impact

5. Maintenance Efficiency: Clear fiber identification and easy access simplify troubleshooting and repairsWww.adsscable.cn

Installation Best Practices: 5 Critical Steps

1. Pathway Preparation
   Ensure surfaces are smooth and free of sharp edges. Use radius guides to maintain minimum bend radius of 20mm. Measure exact cable lengths to avoid excess tension.

2. Cable Handling Protocol
   Always use roller guides when pulling cable. Never exceed maximum tension of 50 Newtons. Avoid twisting the flat cable during installation to prevent stress on fibers.

3. Termination Procedure
   Use flat-cable-specific stripping tools. Carefully expose fibers using precision cleavers. Maintain fiber organization throughout the process.

4. Splicing and Connectivity
   Employ mass fusion splicing for ribbon versions. Use angled physical contact connectors for best performance. Ensure proper strain relief at all connection points.

5. Testing and Validation
   Conduct OTDR testing from both ends. Document insertion loss values for each fiber. Verify compliance with TIA-568.3-D standards.

Common Installation Mistakes and Solutions

⚠️ Critical Warning: These errors can compromise safety and performance

• Incorrect Bend Radius: Exceeding 20mm bend radius causes increased attenuation - use bending guides

• Improper Support: Inadequate support leads to cable sagging - install supports every 400mm

• Jacket Damage: Using conventional stripping tools can damage LSZH jacket - always use specified tools

• Fire Barrier Penetration: Improper sealing at firewall penetrations violates safety codes - use approved firestop systems

Performance Comparison: Flat LSZH vs Conventional Cables

Real-World Implementation Case

During a 2024 high-rise renovation in Madrid, our team deployed 8 kilometers of flat LSZH Kable fiber optik to replace outdated copper infrastructure. The flat design allowed installation in existing conduits that were previously considered full, saving approximately €200,000 in pathway modification costs. The LSZH properties proved crucial when an electrical fire occurred during construction - the cable produced minimal smoke, allowing firefighters to quickly locate and extinguish the source without toxic gas concerns. Post-installation testing showed consistent performance of 0.28 dB/km attenuation across all 288 fibers.

Maintenance and Safety Checklist

• Monthly visual inspection for jacket integrity

• Quarterly cleaning of all connectors and interfaces

• Bi-annual OTDR testing and documentation

• Annual fire safety compliance verificationWww.adsscable.cn

• Emergency repair kit always available on site

• Staff trained in LSZH-specific handling procedures

• Updated documentation after any modifications

Frequently Asked Questions

1. Can flat LSZH cable be used in outdoor applications?
   While primarily designed for indoor use, some versions with additional UV-resistant coatings can be used in protected outdoor environments.

2. What is the maximum temperature rating?
   Standard flat LSZH cables are rated for continuous operation at 75°C and short-term survival at 150°C.

3. How does the cost compare to traditional cables?
   Initial cost is 20-30% higher than PVC cables, but total cost of ownership is lower due to easier installation and maintenance.

   Www.adsscable.cn

4. Are special connectors required?
   Standard LC/SC connectors work, but recommend using angled polish connectors for best performance in high-density applications.

5. Can it be mixed with conventional cables in same pathways?
   Yes, but must maintain separation from power cables and follow local fire safety regulations for mixed installations.

Flat LSZH Kable fiber optik technology represents the future of safe, high-density optical networking for modern buildings. By combining space-efficient flat design with advanced safety materials, these cables provide optimal performance while ensuring maximum protection for occupants and equipment.
